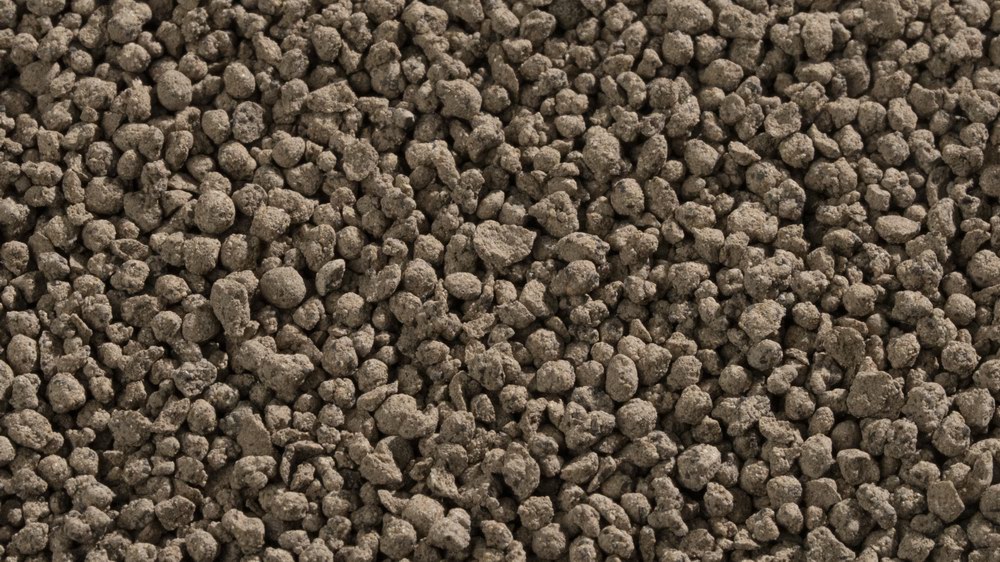

SJ102D Agglomerated flux

Explanation: SJ102D is an aluminum alkali sintered flux used for submerged arc welding, with a particle size of 10-40 mesh. Stable welding arc and beautiful forming. Welding metal has good resistance to cold and hot fatigue, high temperature oxidation, and wear resistance.Usage: Used in conjunction with appropriate welding wire for surfacing of various wear-resistant and impact resistant working surfaces, such as high furnace bell, rolling mill, etc,

More →

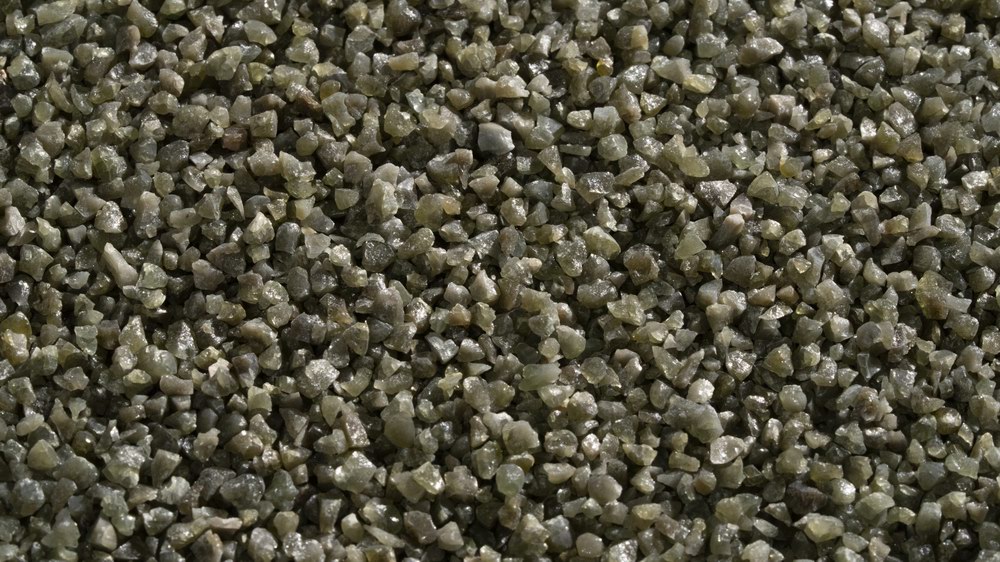

HJ131 Fused flux

Explanation: HJ131 is a smelting type manganese free high silicon low fluorine flux, with white to gray pumice like grains and a particle size of 2.0-0.28mm (10-60 mesh). The welding process has good performance in both AC and DC applications.Purpose: To be used in conjunction with nickel based welding wire for welding nickel based alloy thin plate structures. Corresponding welding wires can be used in the aerospace industry.

More →

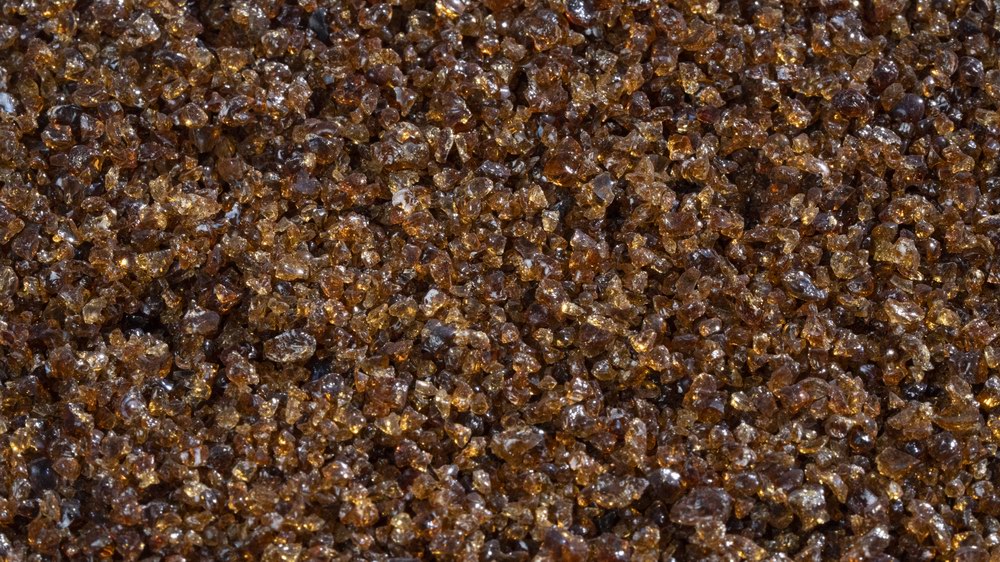

HJ330 Fused flux

Explanation: HJ330 is a smelting type medium manganese high silicon low gas flux, with brownish red glassy particles with a particle size of 2.5-0.45mm (8-40 mesh). Can be used for both AC and DC, with the welding wire connected to the positive electrode during DC welding. The welding process has good performance and beautiful forming.Usage: Used in conjunction with H08MnA, H08Mn2SiA, H10Mn2, and H10MnSi welding wires, it can weld low carbon steel and certain low alloy steel structures (such as 16Mn, 15MnTi15MnV, etc.), such as boilers, pressure vessels, etc.

More →

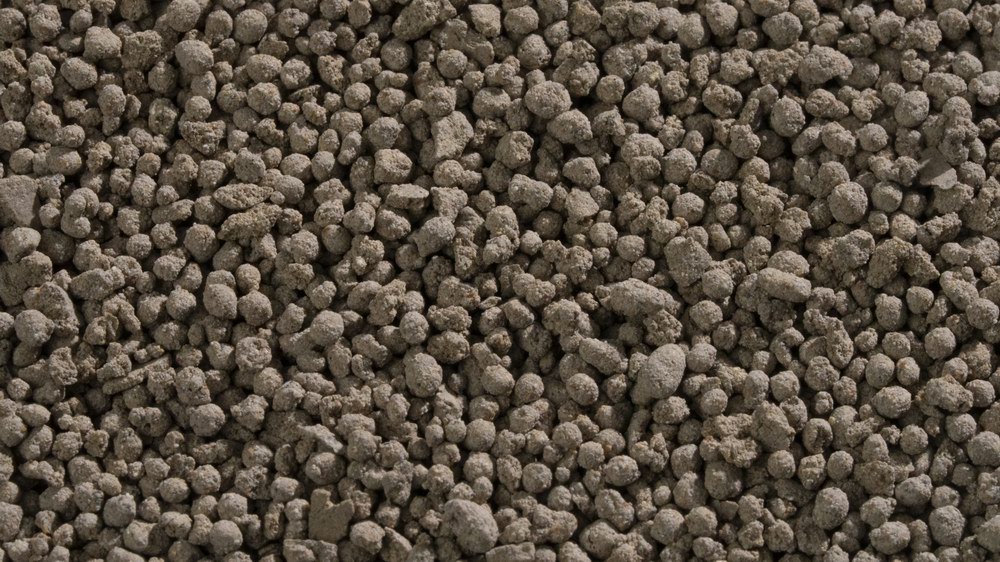

SJ641 Agglomerated flux

Explanation: SJ641 is an alkaline sintering flux used for welding austenitic stainless steel, with gray white particles and a particle size of 2.0-0.28mm (10-60 mesh). Adopting DC power supply, welding wire connected to positive electrode, stable arc, easy slag removal, beautiful weld formation, also suitable for welding of titanium containing stainless steel.Usage: Used in conjunction with austenitic stainless steel welding wires such as H0Cr21Nil0, H0Cr21Nil0Ti, H0Cr20Nil0Nb, etc., it can weld austenitic stainless steel and corresponding grades of low-temperature marine structures and corresponding acid resistant stainless steel structures.

More →

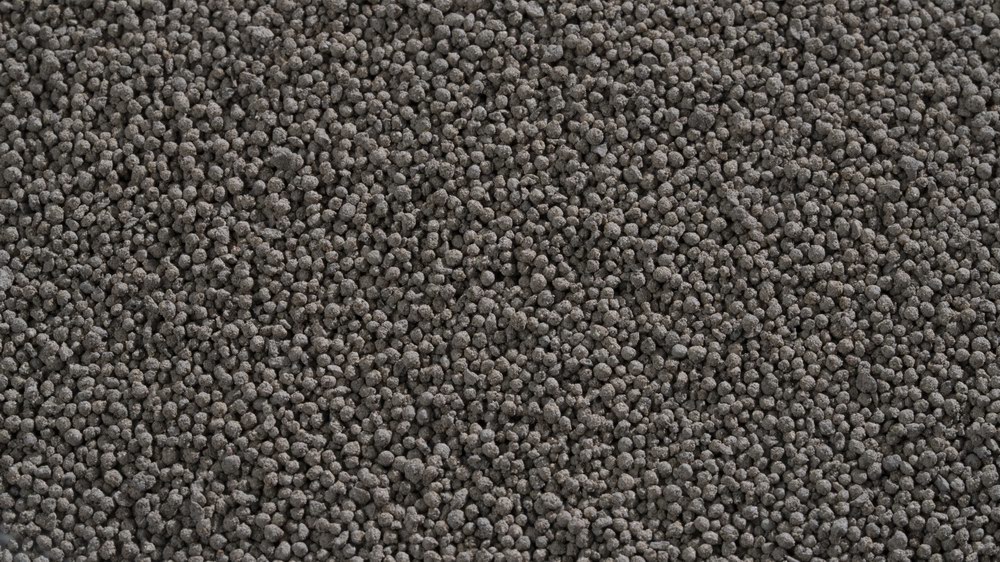

SJ601 Agglomerated flux

Explanation: SJ601 is a specialized alkaline sintering flux for welding stainless steel and high alloy heat-resistant steel, with an alkalinity of about 1.8. It is a gray white circular particle with a particle size of 2.0-0.28mm (10-60 mesh). DC power welding, welding wire connected to positive electrode, pure weld metal, low content of harmful elements. When welding stainless steel, it hardly adds carbon and has the characteristic of low chromium burning loss, which is particularly suitable for welding low-carbon and ultra-low carbon stainless steel. The welded joint has good resistance to intergranular corrosion.Purpose: With appropriate welding wires such as H0Cr21Ni10, H00Cr21Ni10, H00Cr19Ni12Mo2, etc., it can weld important structures such as stainless steel and high alloy heat-resistant steel.

More →

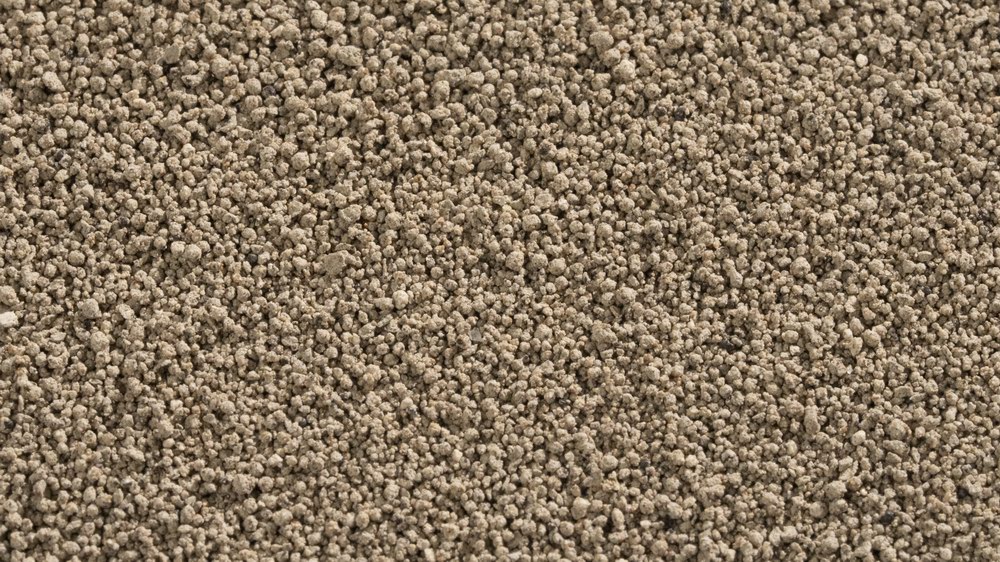

SJ501Y Agglomerated flux

Explanation: SJ501Y is an acidic solder flux with yellow circular particles with a particle size of 2.0-0.28mm (10-60 mesh). Can be used for both AC and DC, with the welding wire connected to the positive electrode during DC welding, and the current can reach 1000A. The arc combustion is stable, slag removal is easy, and the weld seam is aesthetically pleasingUsage: With appropriate welding wires such as H08A, H08MnA, etc., it can weld low carbon steel and certain low alloy steels. Mainly used for rapid welding of fine wires, with a welding speed of up to 110m/hour.

More →

Our Advantages

High production efficiency, high weld quality, manual operation, inherent advantages of stable welding quality, high welding productivity, no arc light and minimal smoke, make it the main welding method in the production of important steel structures such as pressure vessels, pipe sections, and box beams and columns

The product is widely used in marine engineering, nuclear power industry, shipbuilding, boilers, chemical equipment, bridge construction, metal structures, oil pipelines, pressure vessel manufacturing, roll welding, construction industry, etc

We have 18 technical personnel, a complete quality assurance system and experimental testing capabilities, chemical analysis, welding, mechanical performance laboratories and testing equipment, and close connections and cooperation with multiple universities, research institutes, and research institutes

Having an experienced and strong technical team, constantly exploring and innovating in research and development, ensuring the quality of solder flux, and providing customers with comprehensive after-sales service

More

Advantages

Performance advantages

Application

Widely used

Strength

Enterprise strength

Technical capability

Service System

Luoyang Peony Welding Materials Group Co., Ltd.

Luoyang Mudan Welding Materials Group Co., Ltd. was founded in 1985. It is a welding material production enterprise that integrates scientific research, production, and marketing. Its annual sales volume exceeds 50000 tons, ranking among the top in the domestic welding flux industry. The products are melting fluxes HJ431, HJ431A, HJ350, HJ330, HJ260, HJ250G, HJ257, HJ107 and other sintered fluxes for "Mudan" and "Kao" brand submerged arc automatic welding SJ101、SJ201、SJ301、SJ401、SJ501、SJ601、SJ602、SJ604、SJ609、SJ609S、SJ641、SJ891 Waiting for flux, H08A, H08MnA, H10Mn2 welding wire series products, and other grades of products can be produced according to customer needs.The company's products are widely used in industries such as marine engineering, nuclear power industry, shipbuilding, boilers, chemical equipment, bridge construction, metal structures, oil pipelines, pressure vessel manufacturing, roll welding, and construction. The company has strong technical strength, including 18 middle and senior technical personnel, with a complete quality assurance system and experimental testing capabilities. It has chemical analysis, welding, mechanical performance testing laboratories and testing equipment, and has close connections and cooperation with colleges and research institutes.The company's complete quality assurance system and sufficient technical strength ensure continuous certification by China Classification Du's "Factory Accreditation" and IS09001 Quality Management System. CCS approved products: HJ431, SJ101, SJ604, H08A, H08MnA, H10Mn2. The company has provided a large number of excellent products for China's submerged arc automatic welding industry for a long time.The company relies on the continuous improvement of technology, scientific management, enthusiastic service, and is committed to making products better. To become a century old enterprise and establish a peony brand, so that "peony welding materials" can bloom throughout the country like peony flowers.
